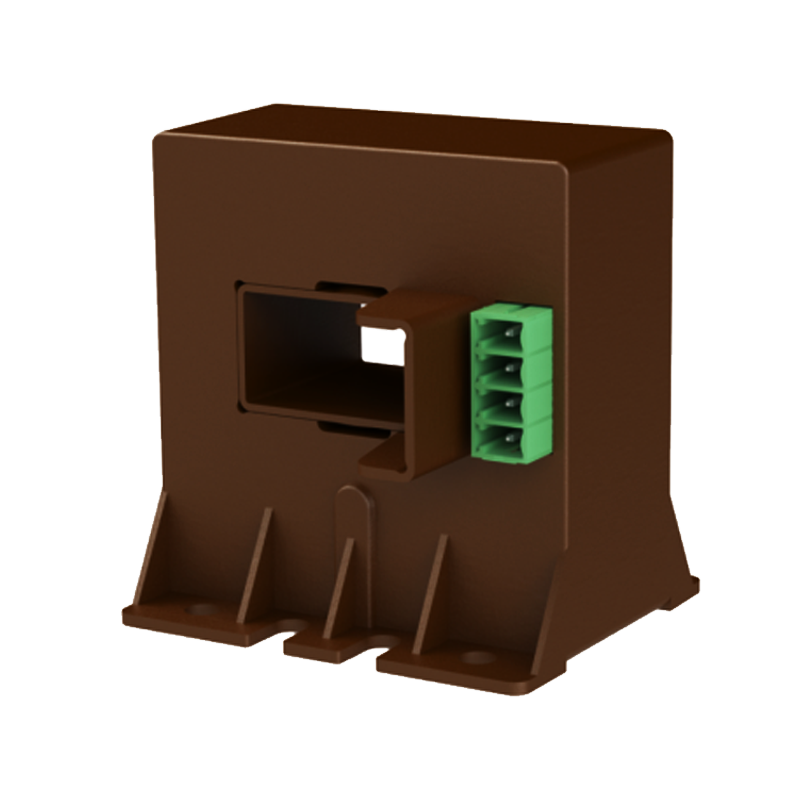

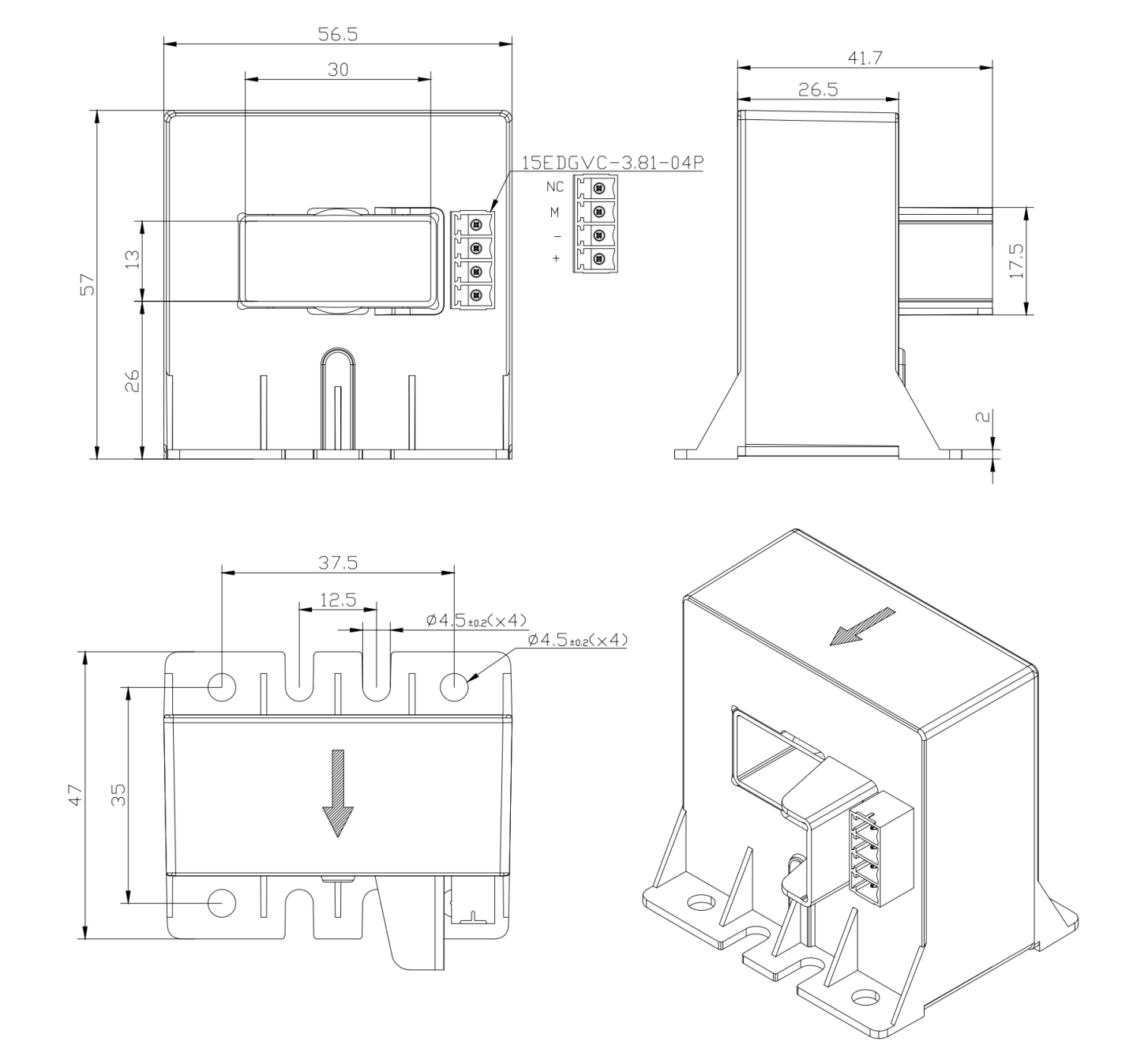

CHB300LAE15D60S-S11

额定输入电流

I_PN

300

A

测量范围

I_PM

with±24V                    0～±910

A

线圈匝数比

N_p / N_S

1: 5000

T

输出电流 RMS

I_S

± 60 * I_P / I_PN

mA

次级绕组电阻

R_S

@ T_A= 25 °C                   88

Ω

@ T_A= 85 °C                   100

测量电阻

R_M

with±15V

@±300Amax  0 (min)    60(max)

Ω

@±700Amax  0 (min)    10(max)

with±24V

@±300Amax  0 (min)    150(max)

@±910Amax  0 (min)    20(max)

供电电压

U_C

（±15～±24） ±5%

V

精度

X

@ I_P=I_PN , T=25°C             < ±0.5

%

偏移电流

I_O

@ I_P=0 , T=25°C              < ±0.2

mA

零点温漂

I_OT

@ I_P=0 , -40 ~ +85°C          < ±0.5

mA

线性度误差

ε_L

<±0.1

%FS

跟随精度 di/dt

> 100

A/µs

响应时间 tra

t_D90

@ 90% of I_PN                  < 1.0

µs

功耗电流

I_C

< 32+I_S

mA

带宽

BW

@ -3dB                      DC-100

KHZ

绝缘电压

U_d

@ 50/60Hz, 1min,               5.5

KV
